Lawn grid IG 40 black 50x50x4 cm (0.25m2)

Inovgreen IG40 geogrids

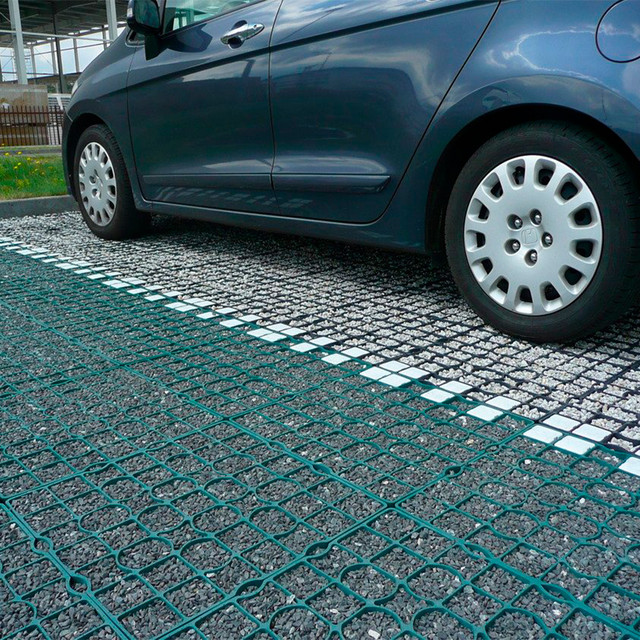

Inovgreen IG40 grill - Inovgreen IG40 parking and lawn grill is the most popular and versatile product with a wide range of applications. The Inovgreen IG40 grid can be used to arrange parking lots, fire department driveways, or driveways to residential buildings and garages. Filled with grass or aggregates, it can be used for all types of construction, giving projects an original character.

• Grid size: 50 cm x 50 cm, height 4 cm
• Grid weight: 1.38 kg = 5.52 kg/m²
• Geometric pattern: 7 x 7 cells (49 cells in one grid)
• Biologically active surface: 87.7%
• Temperature resistance: from -30 C to +80 C
• Strength: up to 1000 t/m² with filler (ITB test report)
• High Grip anti-slip surface.
• Dual Quick Pick fastening system.
• IG40 series for medium-duty vehicles.

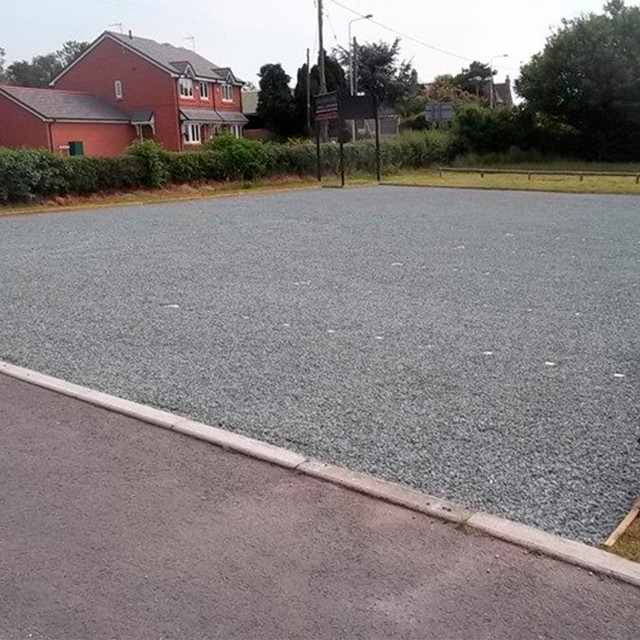

• gravel and grass parking lots
• fire roads
• drainage ditches
• recreational areas
• camping sites
• walks for animals
• paddocks, racetracks, stables
• sports facilities
• storage areas
• gardening
• surfaces for agricultural machinery
• helipads
• approach and temporary roads
• maneuver zones

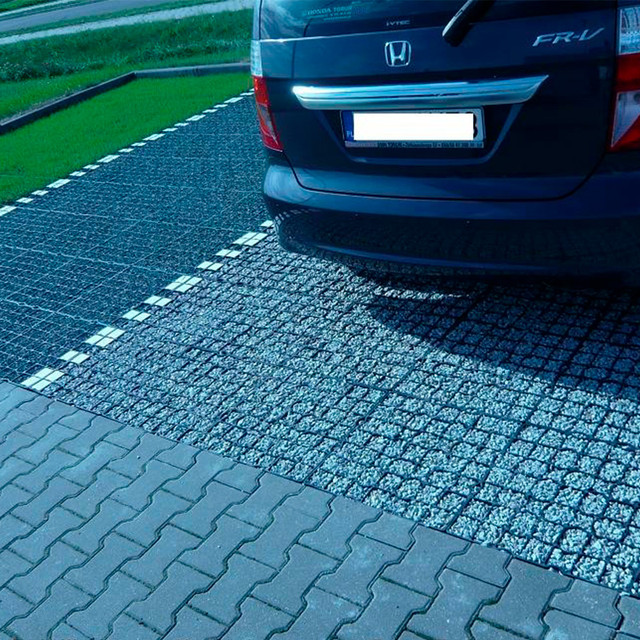

• parking spaces

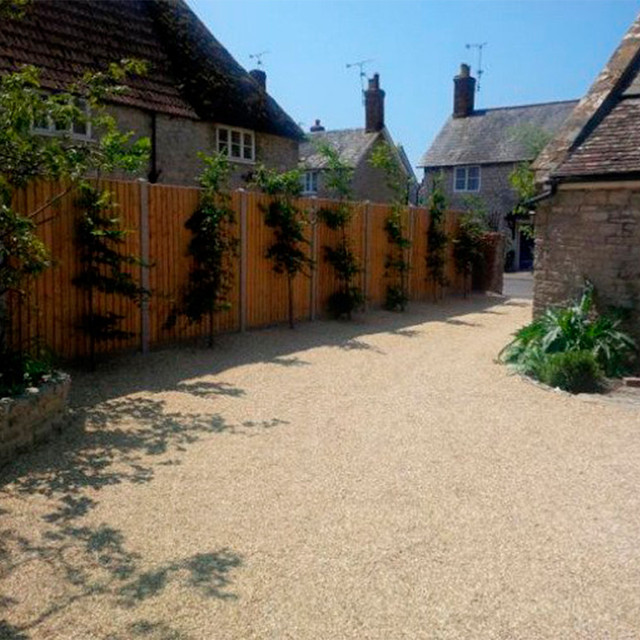

• entrances to garages
• green roofs
• golf courses
• zoos
• shooting range
• access to construction sites
• military training grounds
• preparation of sites for mass events
• nurseries

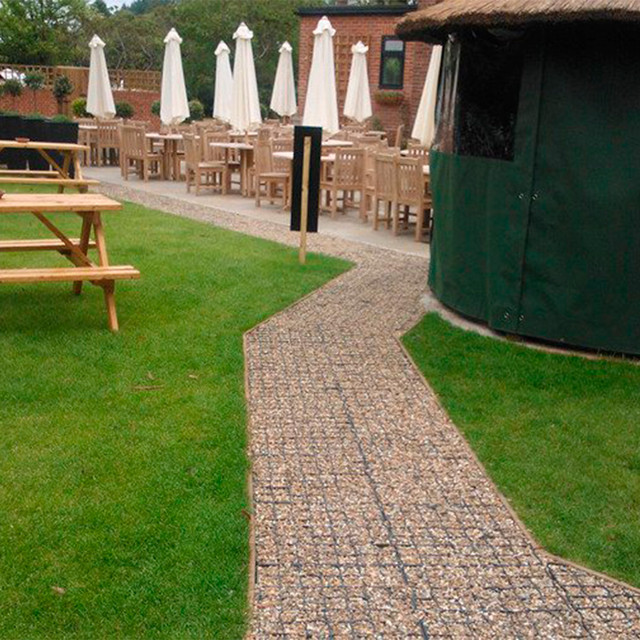

• garden paths

Stage 1. Soil preparation

After removing the top layer of soil, we fill the building site with a well-drained gravel or crushed stone mixture, compact everything. For better stabilization of this layer, the surface can be pre-lined with construction non-woven material or geotextile. The bearing layer should have a thickness of 20 cm, in case of preparation of the site for a road surface for passenger cars, and up to 50 cm for a road surface for trucks.

Stage 2. Leveling layer

Level the surface of the previously prepared bearing layer with geotextile to ensure separation of the layers. Then cover the area with gravel or a mixture of sand and gravel. The leveling layer should be 2-3 cm thick.

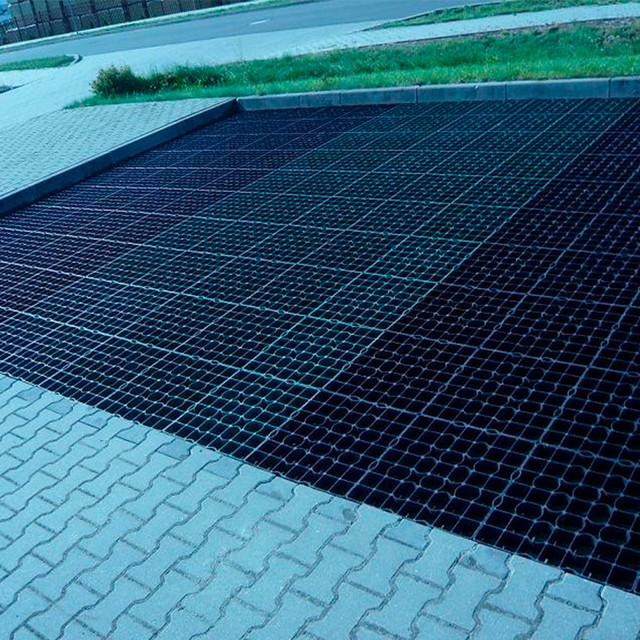

Stage 3. Laying the grids

• INOVGREEN IG grids are laid starting from the corner of the building site, leaving a compensator 2-5 cm from the edge. We lay the first lattices with the tongues in the direction of further laying. The next lattices are laid in the same way, so that the grooves fall on the hooks of the previous lattice, connecting with a "click". We continue laying, standing on the already located lattices. Stabilize the lined surface with a vibrator or roller.

Stage 4. Filling

• Aggregate: Fill the grates with gravel or other aggregate. It is recommended to fill the aggregate 1-2 cm above the grid surface.

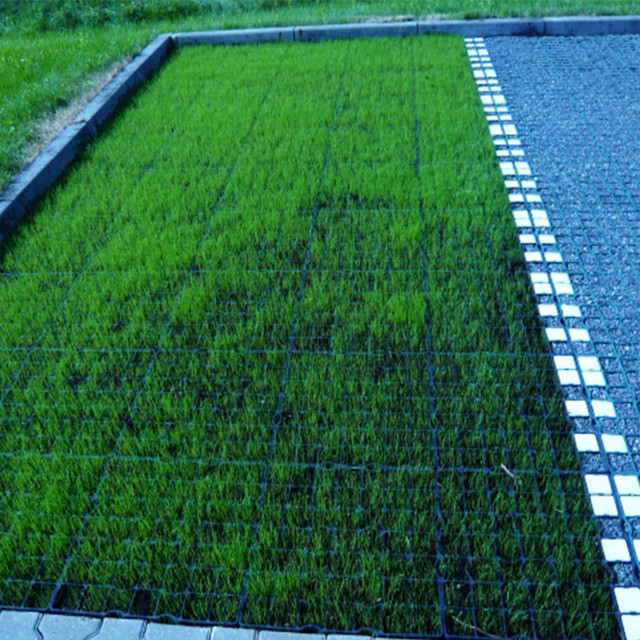

• Grass: Fill the trellis with soil, a mixture of peat and sand, or other material suitable for grass. For best results, mix the grass seed with the substrate before filling the grid. The grass must take root well before making the project area accessible to traffic.

NON-STANDARD METHODS OF SUBSTRATE PREPARATION

In special cases, when intensive use of the area covered with nets is not expected, a simplified method of land preparation can be used.
1. Remove vegetation and topsoil approximately 7 cm thick (depending on surface type).
2. If desired, cover the surface with construction fabric.
3. Pour an even layer of gravel-sand mixture with a thickness of at least 3 cm and lightly tamp it. Then the surface is lined with nets and filled as intended.

ALTERNATIVE TO USING INOVGREEN PARK IP GRIDS

If there is a need to quickly stabilize the green area and heavy traffic is not expected, you can use the fast and efficient method of laying INOVGREEN IP grids.
1. Turn over the panel of four pre-connected IP grids "leaves".
2. Place the first panel, pressing it slightly against the lawn. Then we add and connect by pressing another panel of lattices, turned in the same way.
3. If necessary, the grid can be easily cut to the desired shape.

EASY INSTALLATION

The light weight of INOVGREEN products makes it easy to transport and install the parking and lawn grill. The assembly is simple and fast, the grids are connected using clips. Easy processing with a circular saw or angle cutter is possible. This allows effective and efficient gardening.

ECOLOGY

INOVGREEN soil stabilization perfectly corresponds to modern trends in ecological land use. INOVGREEN nets are completely neutral to the environment, and the surfaces lined with them are suitable for landscaping.

WATER PERMEABILITY

The surface lined with INOVGREEN grids guarantees excellent water permeability of rainwater and melted snow into the soil. The surface lined with grids does not require drainage, which significantly reduces investment and subsequent operating costs.

STRENGTH

INOVGREEN grids have high operational strength. When filled with crushed stone, gravel, earth or other similar material, they have a laboratory-confirmed durability of up to 1,000 tons/m2.

ECONOMIC BENEFITS

The Inovgreen lattice installation system is simple and fast, does not require a lot of labor (1 person can lay up to 100m2 within 1 hour). The cost of soil preparation is much lower than for concrete coatings. Using the Inovgreen system, we avoid the fees associated with draining stormwater into the sewer.

100% RECYCLING

The granules used in the production of INOVGREEN grids are made from 100% recycled plastic. Raw materials for production are certified for the absence of contamination by heavy metals or other substances harmful to health and the environment.

HIGH QUALITY

Inovgreen products are manufactured in accordance with international standards ISO 9001: 2015. INOVGREEN gratings are produced from Polish raw materials of the highest quality from certified manufacturers. The high quality of the material used in production guarantees exceptional strength and flexibility of INOVGREEN grids.

1 layer: 4 units = 1 m²

low palette : 50 layers
dimensions: 103 cm x 103 cm, height 220 cm
number of meters per pallet: 50 m2

high pallet : 60 layers
dimensions: 103 cm x 103 cm, height 260 cm
number of meters per pallet: 60 m²
