Lawn grid IP 40 green 58x39x4 cm (0.2262m2)

Inovgreen IP40 geogrids

Grille Inovgreen IP40 - Lawn and parking grill Inovgreen IP40 is a flexible product that adapts to the surface where it will be laid. The IP40 eco-grid has a system of fasteners along the entire length of the sides, which forms a continuous structure when connected. It works very well as a reinforcement for all kinds of slopes, ledges and drainage ditches. Also used in green parking lots with low traffic.

• Grid dimensions: 39 x 58 cm, height. 4 cm; 1 piece = 0.22 m2.
• Geometric pattern: 6 x 9 cells (56 cells in one grid)
• Weight grids: 4.66 kg/m² = 1.05 kg/pc.
• Temperature resistance: from -30°C to +80°C
• Installation method: using built-in hooks (no tools required)
• Environmental impact: harmless
• Biological surface activity: 90.1%
• Pressure resistance: up to 1000 t/m² with filling (ITB test protocol)
• Certificates/authorizations: TÜV Nord ISO 9001: 2015
• High Grip anti-slip surface.
• Dual Quick Pick fastening system.

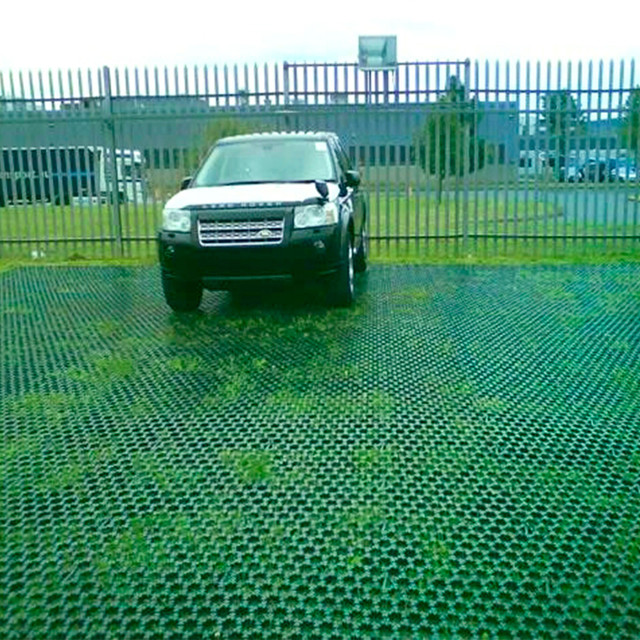

• gravel and grass parking lots
• approach and temporary roads
• drainage ditches
• recreational areas

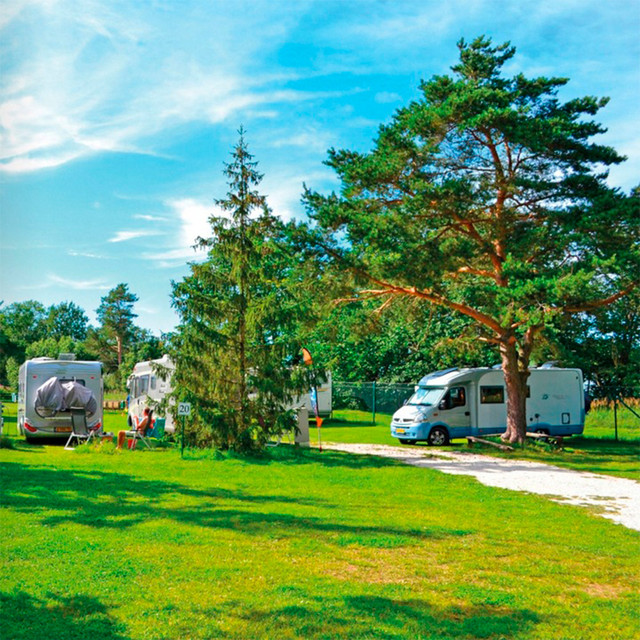

• camping sites
• walks for animals
• military training grounds
• sports facilities
• parking spaces up to 3.5 t
• strengthening of pond banks
• surfaces for agricultural machinery
• helipads
• pedestrian and bicycle paths
• entrances to garages
• zoos
• preparation of sites for mass events

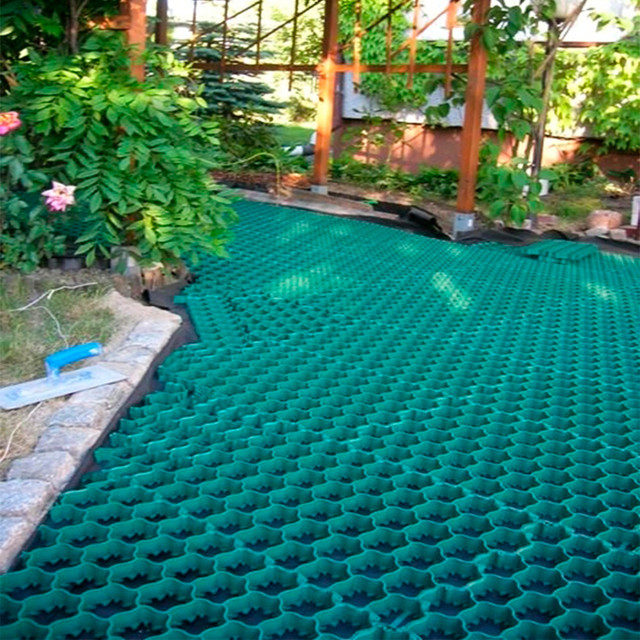

• garden paths

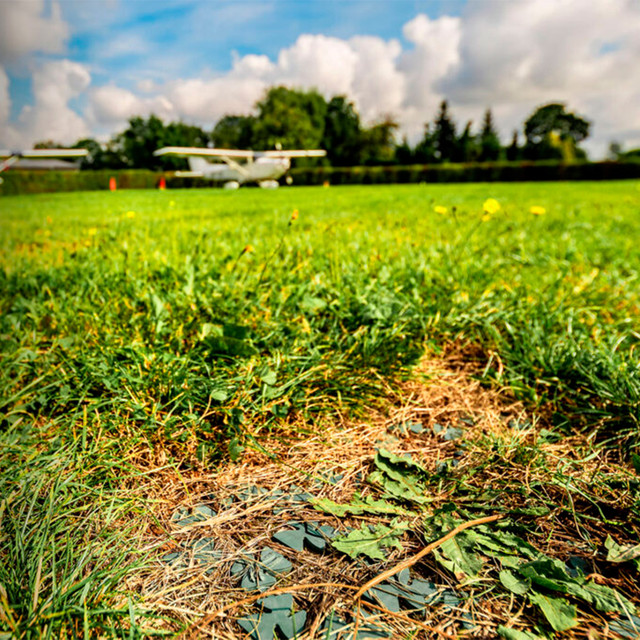

• strengthening existing lawns
• golf courses
• the territory of the house - drainage
• preparation of sites for mass events
• gardening
• nurseries
• shooting range
• strengthening of slopes

Stage 1. Soil preparation

After removing the top layer of soil, we fill the building site with a well-drained gravel or crushed stone mixture, compact everything. For better stabilization of this layer, the surface can be pre-lined with construction non-woven material or geotextile. The bearing layer should have a thickness of 20 cm, in case of preparation of the site for a road surface for passenger cars, and up to 50 cm for a road surface for trucks.

Stage 2. Leveling layer

Level the surface of the previously prepared bearing layer with geotextile to ensure the separation of the layers. Then cover the area with gravel or a mixture of sand and gravel. The leveling layer should be 2-3 cm thick.

Stage 3. Laying the grids

• INOVGREEN Park (IP) grids are laid starting from the corner of the building site, leaving a compensator 2-5 cm from the edge. We lay the first lattices with the "women's" hooks facing outwards. Then we add more lattices and, pressing with our feet, connect the protrusions. Continue stacking while standing on the already placed grids. Stabilize the surface with a vibrator or roller.

Stage 4. Filling

• Aggregate: Fill the grates with gravel or other aggregate. It is recommended to fill the aggregate 1-2 cm above the grid surface.
• Grass: Fill the trellis with soil, a mixture of peat and sand, or other material suitable for grass. For best results, mix the grass seed with the substrate before filling the grid. The grass must take root well before making the project area accessible to traffic.

NON-STANDARD METHODS OF SUBSTRATE PREPARATION

In special cases, when intensive use of the area covered with nets is not expected, a simplified method of land preparation can be used.
1. Remove vegetation and topsoil approximately 7 cm thick (depending on surface type).
2. If desired, cover the surface with construction fabric.
3. Pour an even layer of gravel-sand mixture with a thickness of at least 3 cm and lightly tamp it. Then the surface is lined with nets and filled as intended.

ALTERNATIVE TO USING INOVGREEN PARK IP GRIDS

If there is a need to quickly stabilize the green area and heavy traffic is not expected, you can use the fast and efficient method of laying INOVGREEN IP grids.
1. Turn over the panel of four pre-connected IP grids "leaves".
2. Place the first panel, pressing it slightly against the lawn. Then we add and connect by pressing another panel of lattices, turned in the same way.
3. If necessary, the grid can be easily cut to the desired shape.

EASY INSTALLATION

The light weight of INOVGREEN products makes it easy to transport and install the parking and lawn grill. The assembly is simple and fast, the grids are connected using clips. Easy processing with a circular saw or angle cutter is possible. This allows effective and efficient gardening.

ECOLOGY

INOVGREEN soil stabilization perfectly corresponds to modern trends in ecological land use. INOVGREEN nets are completely neutral to the environment, and the surfaces lined with them are suitable for landscaping.

WATER PERMEABILITY

The surface lined with INOVGREEN grids guarantees excellent water permeability of rainwater and melted snow into the soil. The surface lined with grids does not require drainage, which significantly reduces investment and subsequent operating costs.

STRENGTH

INOVGREEN grids have high operational strength. When filled with crushed stone, gravel, earth or other similar material, they have a laboratory-confirmed durability of up to 1,000 tons/m2.

ECONOMIC BENEFITS

The Inovgreen lattice installation system is simple and fast, does not require a lot of labor (1 person can lay up to 100m2 within 1 hour). The cost of soil preparation is much lower than for concrete coatings. Using the Inovgreen system, we avoid the fees associated with draining stormwater into the sewer.

100% RECYCLING

The granules used in the production of INOVGREEN gratings are made from 100% recycled plastic. Raw materials for production are certified for the absence of contamination by heavy metals or other substances harmful to health and the environment.

HIGH QUALITY

Inovgreen products are manufactured in accordance with international standards ISO 9001: 2015. INOVGREEN gratings are produced from Polish raw materials of the highest quality from certified manufacturers. The high quality of the material used in production guarantees exceptional strength and flexibility of INOVGREEN grids.

1 layer: 4 units = 0.9048 m²

low palette : 50 layers
dimensions: 120 cm x 80 cm, height 220 cm
number of meters per pallet: 45.24 m2

high pallet : 60 layers
dimensions: 120 cm x 80 cm, height 260 cm
number of meters per pallet: 54.29 m²
